Description
Dec has developed a range of connecting systems meeting the different containment and GMP requirements. The choice for the right system strongly depends on the level of containment to be achieved.
For instance, the manually handled double tube system allows for a fast, economical and dust free connection whereas the DCS® Docking system provides high containment as it offers primary and secondary containment in addition to guaranteeing ISO 7 thus eliminating the need to install the emptying station in a clean room.
The selection of the appropriate docking system can be made as follows:
Dust-Free Operation: OEB 1-2
Double Tube System
with cover and manually operated clamp. This double ring and lever mechanism system allows for a fast and dust-free connection and discharge of big bags. Interchangeable inner tubes ensure flexibility, i.e. change of big bags.
Features
- Various dimensions of cones and inner tubes for BBs with a typical spout diameter of 300 – 600 mm
- Typical outlet flange DN 300
- Other sizes available
- Various materials available (SS, HC22, coated)
Options
- Additional clamps for fixation of outer bag
- Integrated filter
- Vibrator
- Cover with spray nozzles
SingleTube System
with inflatable seal
In addition to the dust-free connection, the GMP design of this docking system allows for easy system cleaning including SIP if required. It comprises a single tube without internal parts. The BB is sealed to the tube by an inflatable seal which can be easily manipulated and secured in position providing very high tightness of the docking even for various liner sizes. The system can be cleaned by using a removable cover with a spray nozzle. Optionally an integrated ventilation ring allows to capture any dust during the removal of the big bags.
Features
- Typical outlet flange DN 300
- Various materials available ( SS, HC22, coated)
Options
- Ventilation ring
- Vibrator
- Retractable spray ball
- SIP version
Primary Containment: OEB 3-4

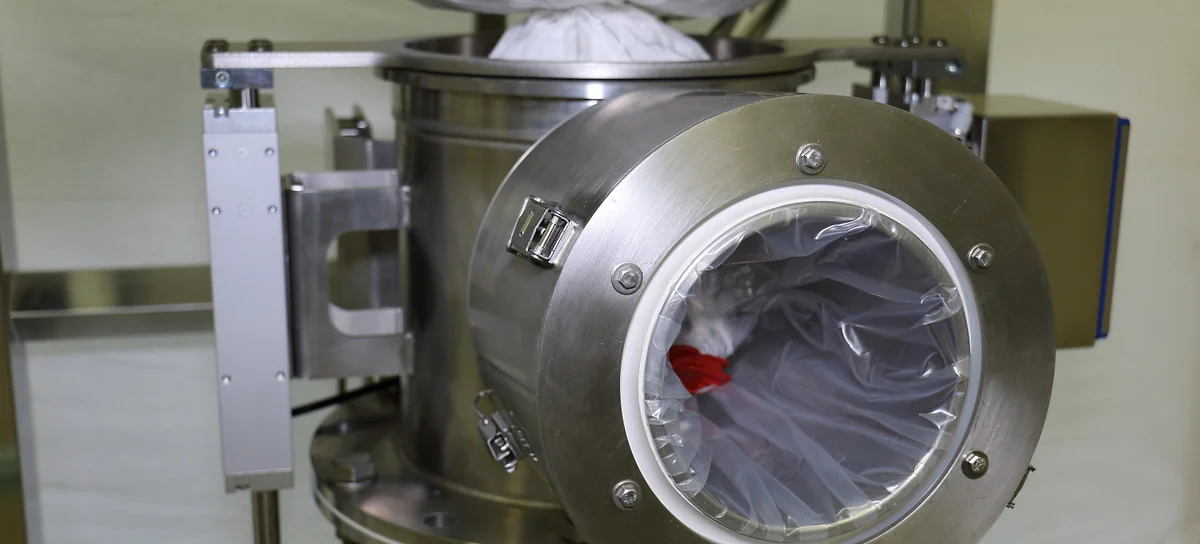

SafeDock System
Patent pending SafeDock is a revolutionary system allowing for a very simplified and fast docking operation while guaranteeing a very high containment level. SafeDock consists of a docking tube with a CLS Continuous Liner side port for the removal of the liners and an automated cover on piston to fully seal the system. The big bag spout is sealed to the station by using a single-use ring which is removed with the remaining liner in a contained manner.
Features
- Side port for liner and ring removal
- BB outlet size 350 to 450
- Typical outlet flange DN 300
- Various materials available ( SS, HC22, coated)
Options
- Vibrator
- CIP Cover with spray nozzle
Product Sheet / SafeSeal closing tool for flexible bags

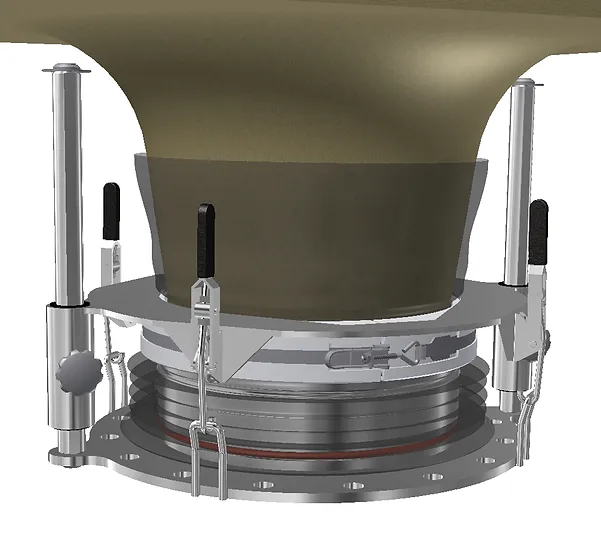

UniDock System
UniDock allows for simplified charging and discharging of big bags, whilst ensuring a high containment level, efficient and reliable operation. It was specifically designed for solvent-moist products and is compatible with standard FIBCs. A protection sleeve excludes any contact with the product. With minimal cleaning efforts, UniDock combines essential FIBC handling advantages.
Features
- No side port for liner removal
- BB outlet size of 350-450 mm
- Typical outlet flange DN 300
- Various materials available ( SS, HC22, coated)
Options
- Vibrator
- Retractable spray ball
Product Sheet / SafeSeal closing tool for flexible bags
Primary and Secondary Containment: OEB 4-5
DCS® Docking
DCS® Docking system is especially designed to connect and discharge big bags with single or double liners under full containment (< 1 µg/m3).
For higher containment requirements (0.1µg/m3), big bags can be fitted with a Rapid Transfer Port (RTP).
DCS® guarantees both primary and secondary containment with a glove box enabling the operator to connect the drum liners within a sealed environment.
Features
- Inlet and outlet push-push filter H12 or H14
- BB outlet size of 350 to 450
- Typical outlet flange DN 300
- Various materials available ( SS, HC22, coated)
Options
- ISO 6 Class internal
- CIP Cover with spray nozzle
- RTP port for OEB 5 products (0.1 µg/m3)
Product Sheet > Big Bag Filling > Bulk Materials Handling, more products
